ERW HF Tube Mills
PRODUCT
ERW HF Tube Mills
Gallium offers custom-made ERW HF Tube mills in both Conventional W-Forming Design and Cassette-type Rafted Design for rapid changeover / FFX Mills / DFT Mills with adverse T/D as well, which results in lesser down-time and increased productivity.
Each tube mill is designed as per exact specifications and features as requested by our clients.
Applications
- Mechanical/Precision Tubes
- Structural and Scaffolding
- Water and Sewage Galvanized Pipes
- Square and Rectangle Hollow Sections
- Automotive
- Casing Pipes/API Grade/OCTG
- Boiler and Heat Exchanger
- Infrastructure and Railways
Features
- 100% in-house Design and Development.
- Wide range of equipment designs for custom utility and development.
- Project Engineering Services.
- State-of-the-art production facilities.
- Highly experienced team for startup and production assistance.
- Prompt deliveries.
- Can be supplied as complete systems or parts thereof as per client requirement.
- * Long-term equipment financing options available.

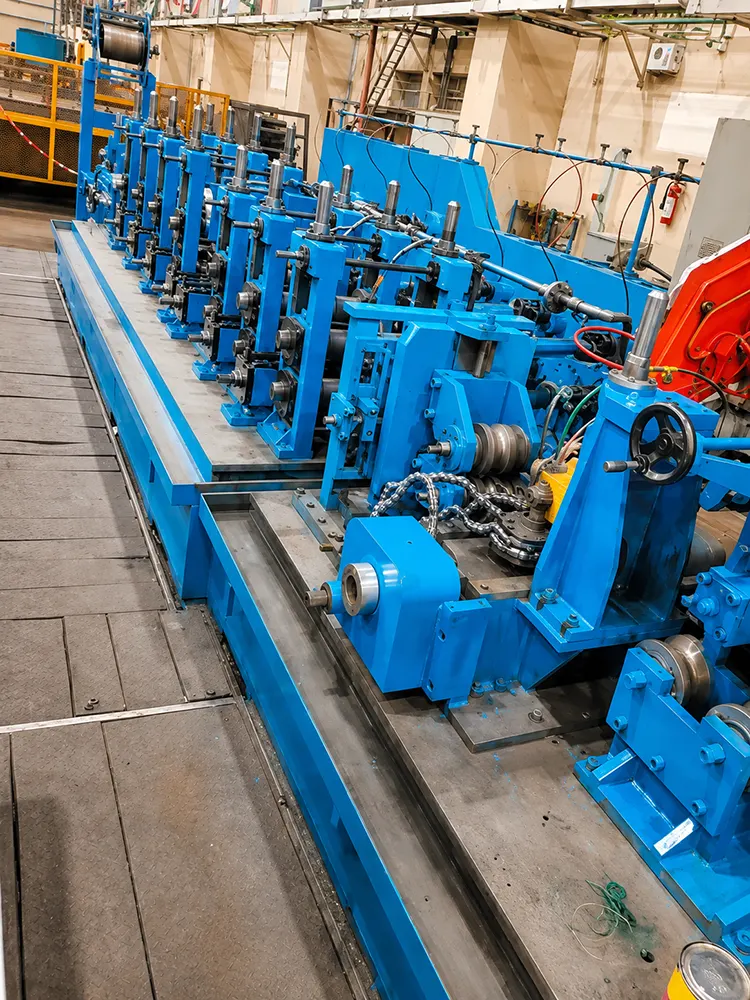

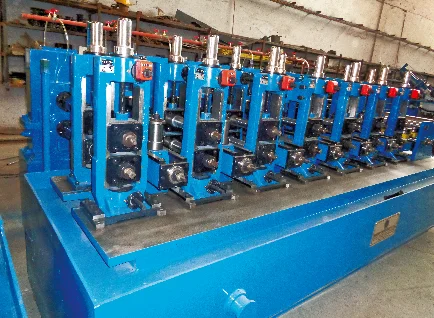

Conventional Tube Mills / FFX Mills / DFT Mills
Gallium offers custom-made ERW HF Tube mills in both Conventional W-Forming Design and Cassette-type Rafted Design for rapid changeover / FFX Mills / DFT Mills with adverse T/D as well, which results in lesser down-time and increased productivity.
Each tube mill is designed as per exact specifications and features as requested by our clients.
Applications
- Mechanical/Precision Tubes
- Water & Sewage
- Galvanized Pipes
- Automotive
- Boiler and Heat Exchanger
- Structural & Scaffolding SHS & RHS Hollow Sections Infrastructure
SPECS
ERW Tube Mill Product Range
| Tube Mill Model | Tube OD Range | Tube Thickness Range | Maximum Line Speed (Meter/Min) | ||||
|---|---|---|---|---|---|---|---|
| Min OD (mm) | Max OD (mm) | Min (mm) | Max (mm) | Low | Med | High | |
| GTM - 1.0 | 10.0 | 25.4 | 0.5 | 2.0 | 60 | 100 | 120 |
| GTM - 1.5 | 12.7 | 38.1 | 0.6 | 2.5 | 60 | 100 | 120/150 |
| GTM - 2.0 | 12.7 | 50.8 | 0.7 | 3.2 | 60 | 100 | 120/150 |
| GTM - 3.0 | 15.88 | 76.2 | 0.8 | 3.6 | 60 | 100 | 120/150 |
| GTM - 3.5 | 21.3 | 88.9 | 1.2 | 6.0 | 50 | 180 | 100 |
| GTM - 4.5 | 33.4 | 114.3 | 1.2 | 5.4 | 50 | 180 | 100 |
| GTM - 5.0 | 42.4 | 127.0 | 1.6 | 6.0 | 50 | 180 | 100 |
| GTM - 6.5 | 60.3 | 168.3 | 2.0 | 7.1 | – | 60 | 90 |
| GTM - 8.5 | 88.9 | 219.3 | 3.0 | 8.2 | – | 30 | 60 |
| GTM - 10.0 | 114.3 | 273.1 | 4.0 | 10.2 | – | 30 | 40 |
| GTM - 12.0 | 152.4 | 323.9 | 4.5 | 12.0 | – | 20 | 30 |
| GTM - 14.0 | 193.70 | 355.60 | 4.5 | 16.0 | – | 30 | – |
Mill Configurations:
- Conventional HF ERW Tube Mills

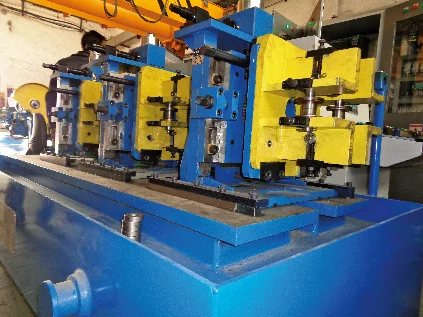

- Cassette Type - Rafted Tube Mill with Quick Changeover Features Gallium
- CRM (Common Roll Mill) - with CNC Motorized Tool Adjustment
- FFX Mills
- DFT (Direct Forming Technology)
