Cold Saw
PRODUCT

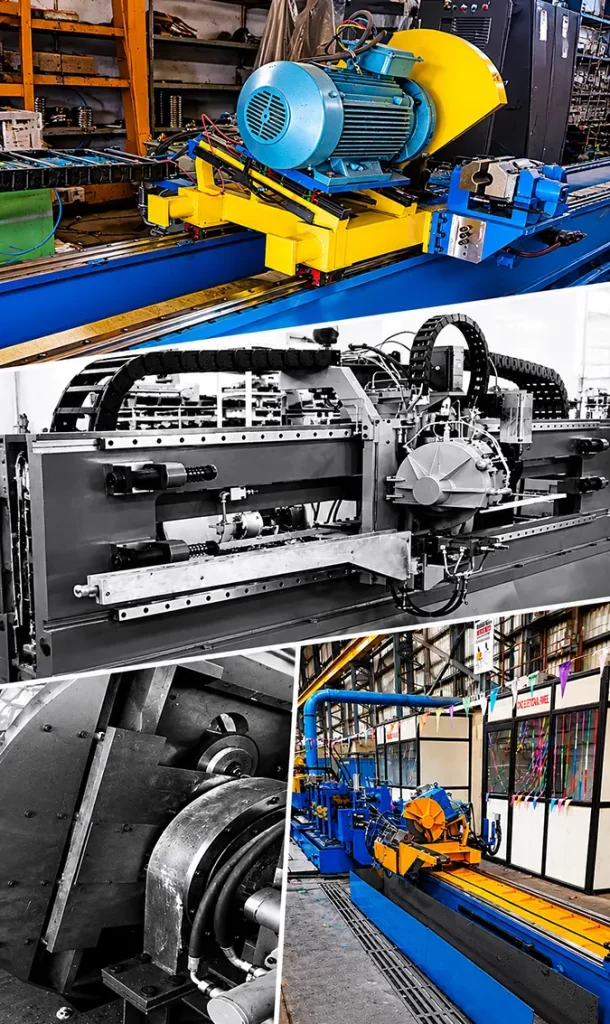

Single Blade Cut Off Systems
Gallium offers Inline flying cut-off systems in following configurations:
- Automatic Tube handling and feeding mechanism.
- Flying Friction Saw Cut off System
Features
- Fully automatic systems.
- Flexibility in operation, CNC controlled and as per length preference.
- Burr free cutting in case of cold saw cut off.
- Max Line speeds up to 150 meters per minute. Suitable for Both CR/HR/GP Steel.
- Integrated Accelerator with high mechanical efficiency. Complete protection from chip contamination.
- Rapid blade changeover mechanism.
- Human Interface control through touchscreen operation.
| Cut Off Model | Tube OD Range | Tube Thickness | Maximum Line Speed |
|---|---|---|---|
| GPCS - CC50 | 12.7-50.8 mm | 0.6 - 2.5 mm | 150 mpm |
| GPCS - CC90 | 19.05-88.9 mm | 0.8 - 3.5 mm | 150 mpm |
| GPCS - MTC120 | 31.5-127 mm | 2.0 - 6.0 mm | 80 mpm |
| GPCS - 168 | 2"- 6" | 2.0 - 7.10 | 60 mpm |
| GPCS - 220 | 3"- 8" | 2.6 - 8.2 | 50 mpm |

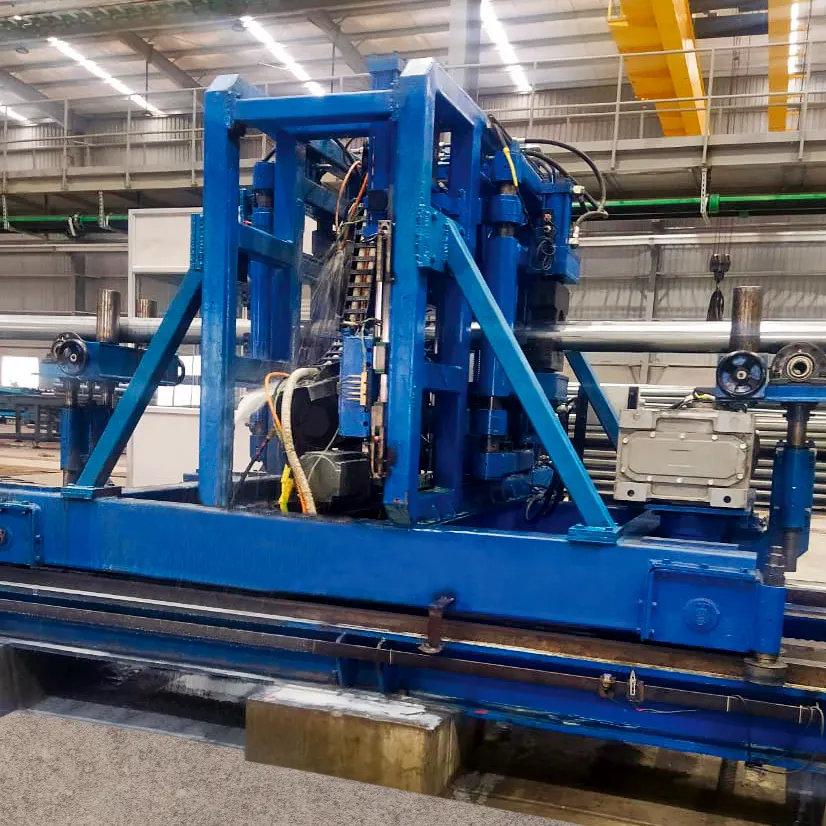

Double Blade Cold Saw Cut Off Machine
Continuously produced tubing is cut to length by a cut off machine. This section function is an important determinant of the overall productivity.
The cutting Devices are 2 Milling Discs actuated by a gear motor AC with Speed Control. The cutting head is mounted on a travelling carriage together with the hydraulic clamping device. The carriage is sliding on linear sliding Guides. There is a side lodging for rack that allows the motion of the Carriage.
Carriage is comprised of normalized welded steel structure & functions to support Cut heads, the Gripping Vices & control group dimensioned for tracking.
The cut heads are 2 in number & work in opposite way both on longitudinal & transversal axis from Center of tube. Both are controlled by respective reduction gears with “0” Play which allow the rotation of the mandrel on which the blade is seated.
| Cut Off Model | Tube OD Range | Tube Thickness | Maximum Line Speed |
|---|---|---|---|
| GPDS - 168 | 2"- 6" | 2.0 - 7.10 | 60 mpm |
| GPDS - 220 | 3"- 8" | 2.6 - 8.2 | 50 mpm |
| GPDS - 323 | 4"- 12" | 3.6 - 12.0 | 36 mpm |
| GPDS - 406 | 6"- 16" | 4.0 - 16.0 | 24 mpm |
| GPDS - 610 | 12"- 24" | 6.0 - 20.0 | 18 mpm |
