PRODUCT PORTFOLIO

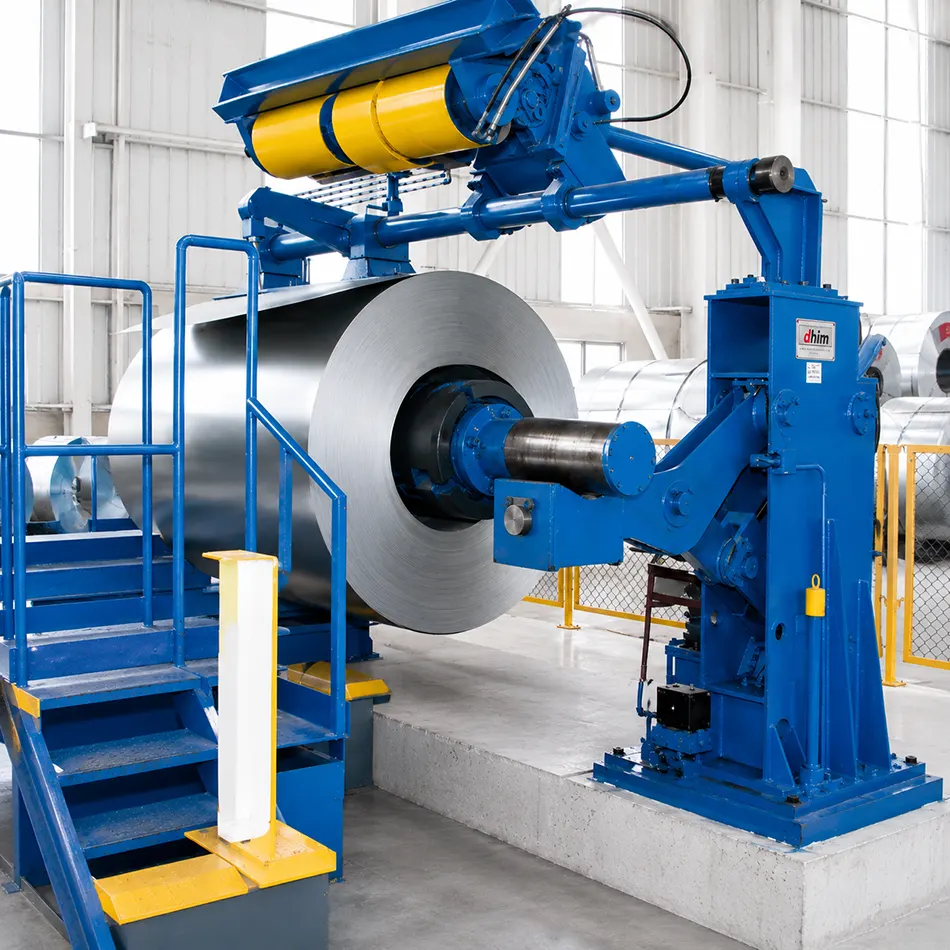

Coil Processing Lines
PRODUCT
Coil Processing Lines
- Slitting lines up to 2200 mm wide & 16 mm thick
- Cut to length machines up to 2000 mm wide & 20 mm thick
- Strip Galvanizing Lines
- Color Coating Lines
- Coil Picking Lines
- Tension Leveling Lines
- Sheet Stacking Systems
- Rotary Shears

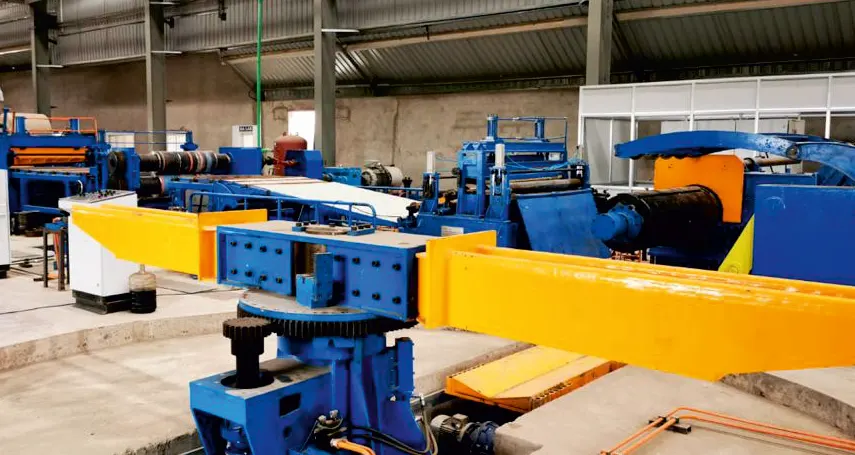

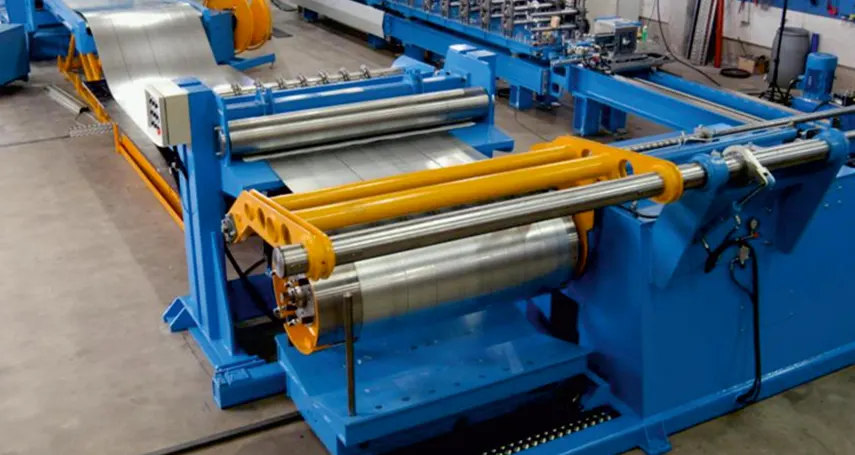

Slitting Lines
Gallium specializes in designing and manufacturing Slitting Lines for Steel Service Centers and Manufacturers who demand precision, reliability and maximum productivity.
Our range of Slitting Lines is divided into various categories on the basis of dimensions and thickness of the material to machine and production quantities.
Mini Slitting Lines:
- 15 ton, 950mm, Thickness 0.2 mm to 3 mm, Speed up to 120 m/min
Medium Slitting Lines:
- Up to 30 Ton, 1600 mm, Thickness 1.5 mm to 16.0 mm, Speed up to 100 m/min
Heavy Slitting Lines:
- Up to 40 Ton, 2200 mm, Thickness 2.5 mm to 12 mm, Speed up to 40 m/min
| Slitting Lines Model | Sheet Thickness (mm) | Coil Width (mm) | Line Speed (m/min) | Coil Weight (T) |
|---|---|---|---|---|
| GPSL - 950 | 0.2-2.5 | 300-950 | 0-120 | 5, ~10 |
| GPSL - 1550 | 0.5-4.5 | 300-1550 | 0-100 | 5, ~10 |
| GPSL - 1800 | 1.2-8.0 | 900-1800 | 0-80 | 25, 30, 40 |
| GPSL - 2000 | 2.5-10.0 | 950-2000 | 0-60 | 25, 30, 40 |
| GPSL - 2200 | 2.5-16.0 | 950-2200 | 0-40 | 25, 30, 40 |
Cut to Length Lines
Gallium specializes in designing and manufacturing Cut To Length Lines for Steel Service Centers and Manufacturers who demand precision, reliability and maximum productivity.
Our range of Cut To Length Lines is divided into various categories on the basis of dimensions, productivity and thickness of the material to be processed.
Automatic Mini CTL:
-
For strip width range 100 to 750 mm, thickness up to 3.5 mm
Operation- START STOP SHEAR / FLYING SHEAR
Automatic CTL:
-
For strip width range 900, 1250, 1550, 1600, 1800 and 2000 mm, thickness up to 16 mm
START STOP SHEAR / FLYING SHEAR / ROTARY SHEAR
| Cut To Length Line Model | Sheet Thickness (mm) | Coil Width (mm) | Line Speed (m/min) | Coil Weight (T) |
|---|---|---|---|---|
| GPCTL - 850 | 0.3-3.0 | 300-850 | 40 | 5, ~10 |
| GPCTL - 1300 | 1.2-4.5 | 400-1300 | 40 | 10, ~15 |
| GPCTL - 1600 | 1.2-6.0 | 400-1600 | 40 | 15, ~20 |
| GPCTL - 1650 | 1.5-8.0 | 400-1650 | 40 | 15, 20, 25 |
| GPCTL - 1800 | 2.0-10.0 | 650-1600 | 40 | 25, 30, 40 |
| GPCTL - 2000 | 3.0-16.0 | 950-2000 | 40 | 25, 30, 40 |
